Fiber Patch Cords

nanoFIBER™ Non-Armored Patch Cord Fiber Jumper Cables

The Backbone of Modern Telecommunications

In today’s fast-paced digital world, fiber jumper cables play a crucial role in keeping telecommunications networks running at peak performance. These high-speed connections form the foundation of data centers, internet service providers (ISPs), enterprise networks, and next-generation technologies like 5G.

Why Fiber Jumpers Matter

Fiber jumper cables play a critical role in modern networking by delivering ultra-fast connectivity with minimal latency, enabling seamless performance for demanding applications like cloud computing, video streaming, and real-time communication. Unlike traditional copper cables, fiber optics ensure high reliability and low signal loss over long distances, maintaining signal integrity and reducing the risk of interference. Designed to support 10G, 40G, 100G, and higher speeds, fiber jumpers are a future-proof solution that scales effortlessly with growing bandwidth demands. Their immunity to electromagnetic interference (EMI) makes them ideal for secure, mission-critical environments such as government networks, financial systems, and sensitive data infrastructures. Whether used in fiber-to-the-home (FTTH) deployments or high-density data centers, fiber jumpers offer unmatched versatility, helping optimize performance while minimizing downtime.

Powering the Future of Telecommunications

Whether enabling VoIP, video conferencing, AI-driven data centers, or autonomous networks, fiber jumper cables are at the heart of modern connectivity—delivering speed, reliability, and security for today’s digital world. The nanoFIBER™ Patch Cord lineup takes this a step further, offering a range of fiber optic cables engineered to enhance connectivity, efficiency, and reliability across telecommunications infrastructure. From high-speed data transmission and fiber-to-the-home (FTTH) deployments to data centers, enterprise networking, and last-mile fiber installations, nanoFIBER™ Patch Cords provide the performance and durability needed to power the future of communication.

Other Products

Hybrid Power Cables⇒

Armored Patch Cables⇒

Armored HDMI & Ethernet⇒

BABA Fire Rated Cable⇒

BABA Armored Cable⇒

BABA Blown Fiber Cable⇒

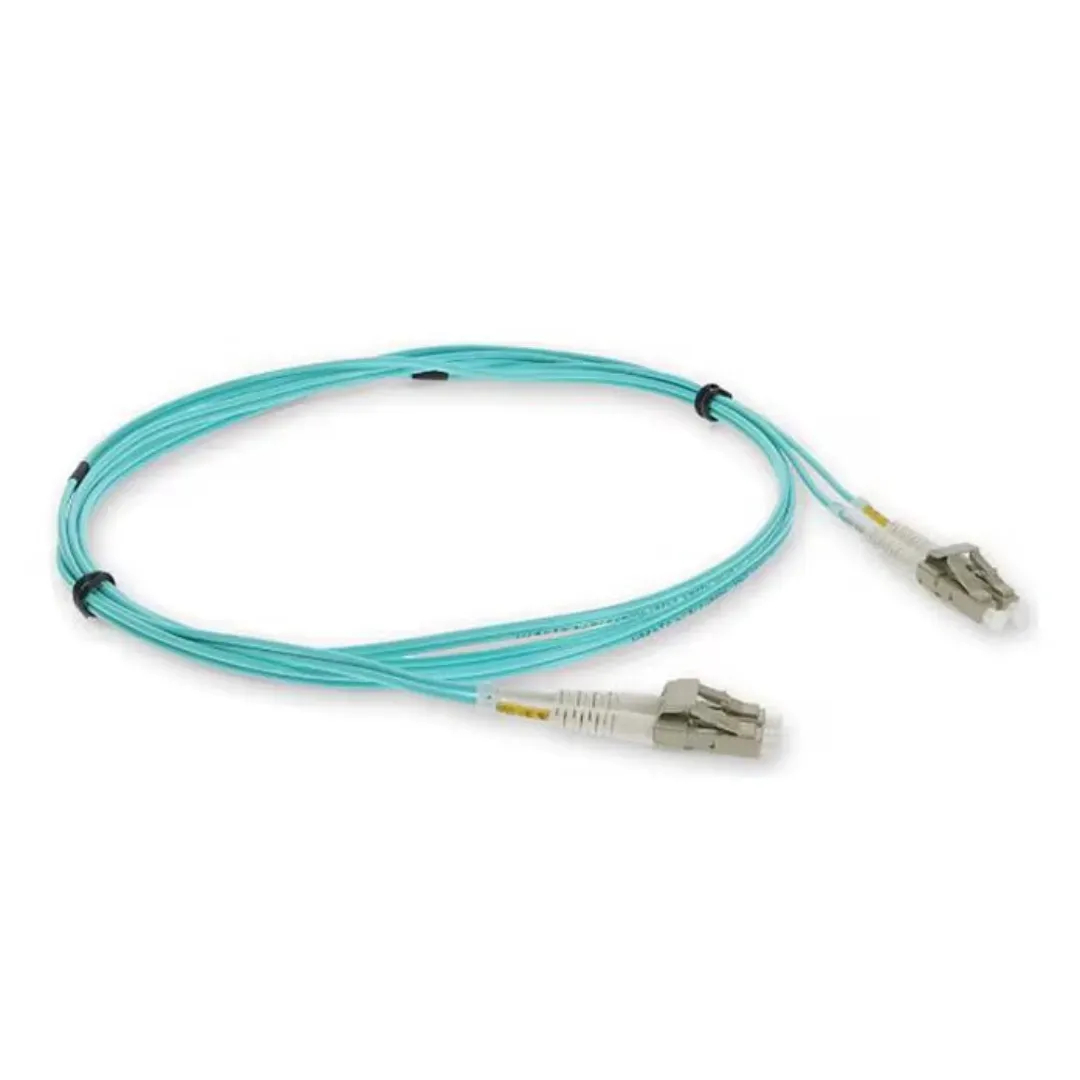

OM4-LCLC-5m

Description:

This is a 5m LC (male) to LC (male) aqua duplex riser-rated fiber patch cable. OM4 cable has a core size of 50 microns that supports 10 Gigabit Ethernet at lengths measuring up to 300 meters, and 40 Gigabit or 100 Gigabit Ethernet measuring up to 100 meters. This optical fiber, nonconductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.

Specs:

Fiber Optic Mode: Multimode OM4

Fiber Count: 1

Fiber Length as shown: 5M Fiber

Fiber Length: 1M to 100M and Custom lengths Left Connector

Gender: Male

Left Connector Type: LC/UPC

Right Connector Gender: Male

Right Connector Type: LC/UPC

Core Diameter: 9/125 & micron

Outer Diameter: 2mm

Jacket Material: OFNR, Riser

Cable Mode: Duplex

Features: Physical Contact (PC)

Product Type: Network Cable

Color: Aqua

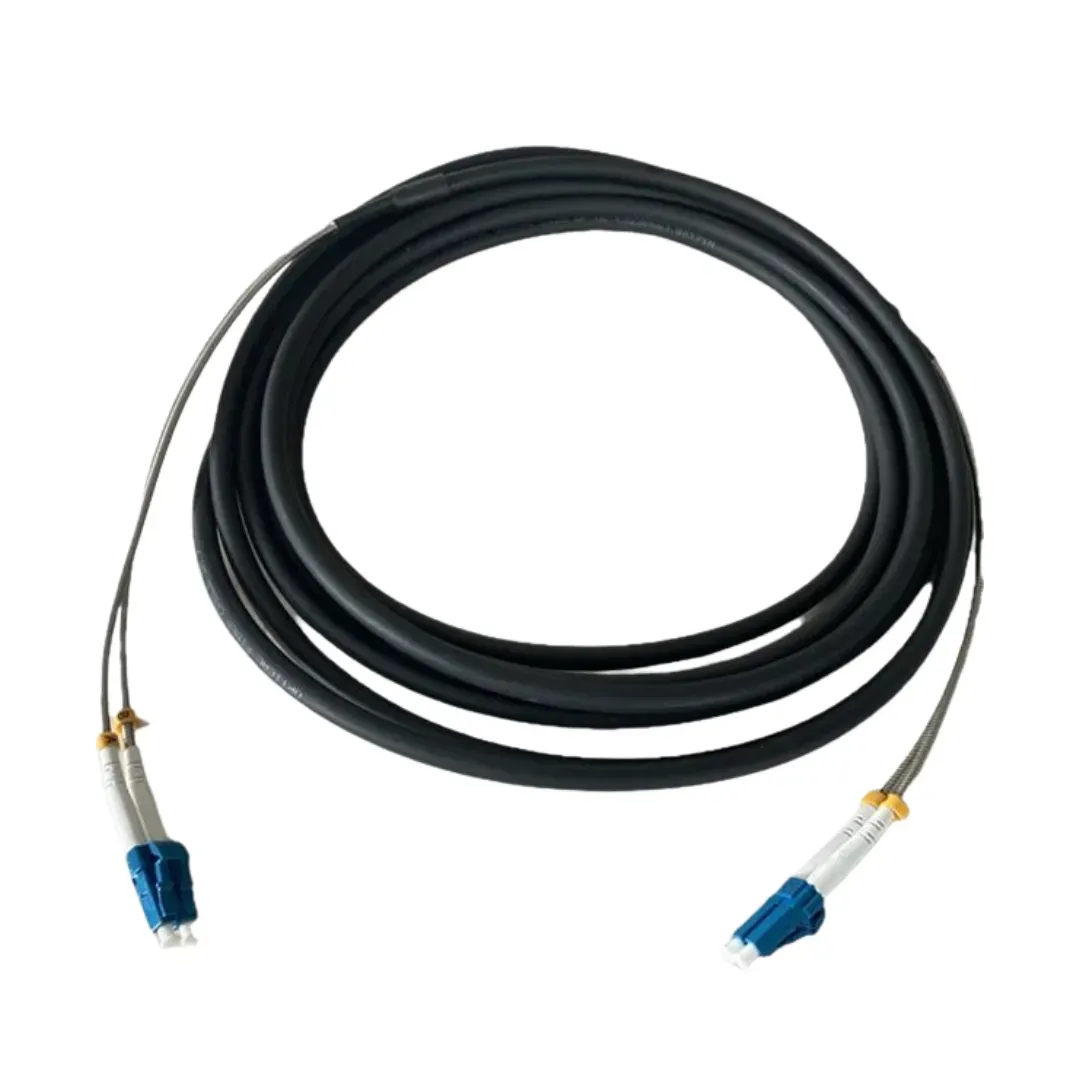

TPU BLK SM LC to LC 255-COAUF88IY3M

Description:

TPU cables are encased in a unique thermoplastic polyurethane coating for greater bendability and durability. As an insulation material, thermoplastic polyurethane (TPU) has excellent mechanical properties, such as strong wear resistance, flexibility, and chemical resistance and flame retardant. TPU cable is favored by many different industries for outdoor applications in mining, construction, and automation.

Singlemode duplex fiber optic LC/LC patch cable is manufactured from 8.3/125 zipcord fiber. The cable has LC connectors on one end, LC connectors on the other, a TPU jacket, and OFNR rated. Duplex singlemode fiber is most commonly used in LAN applications.

Specs:

Fiber Optic Mode: Single mode OS2

Fiber Count: 1

Fiber Length as shown: 3M

Fiber Length: 1M to 100M and Custom lengths

Left Connector Gender: Male

Left Connector Type: LC Singlemode Duplex

Right Connector Gender: Male

Right Connector Type: LC Singlemode Duplex

Core Diameter: 9/125 & micron

Outer Diameter: 2mm

Jacket Material: TPU Thermoplastic Polyurethane Coating

Cable Mode: Duplex

Features: Physical Contact (PC)

Product Type: Network Cable

Download

Our Brochures⇒

Company Details⇒

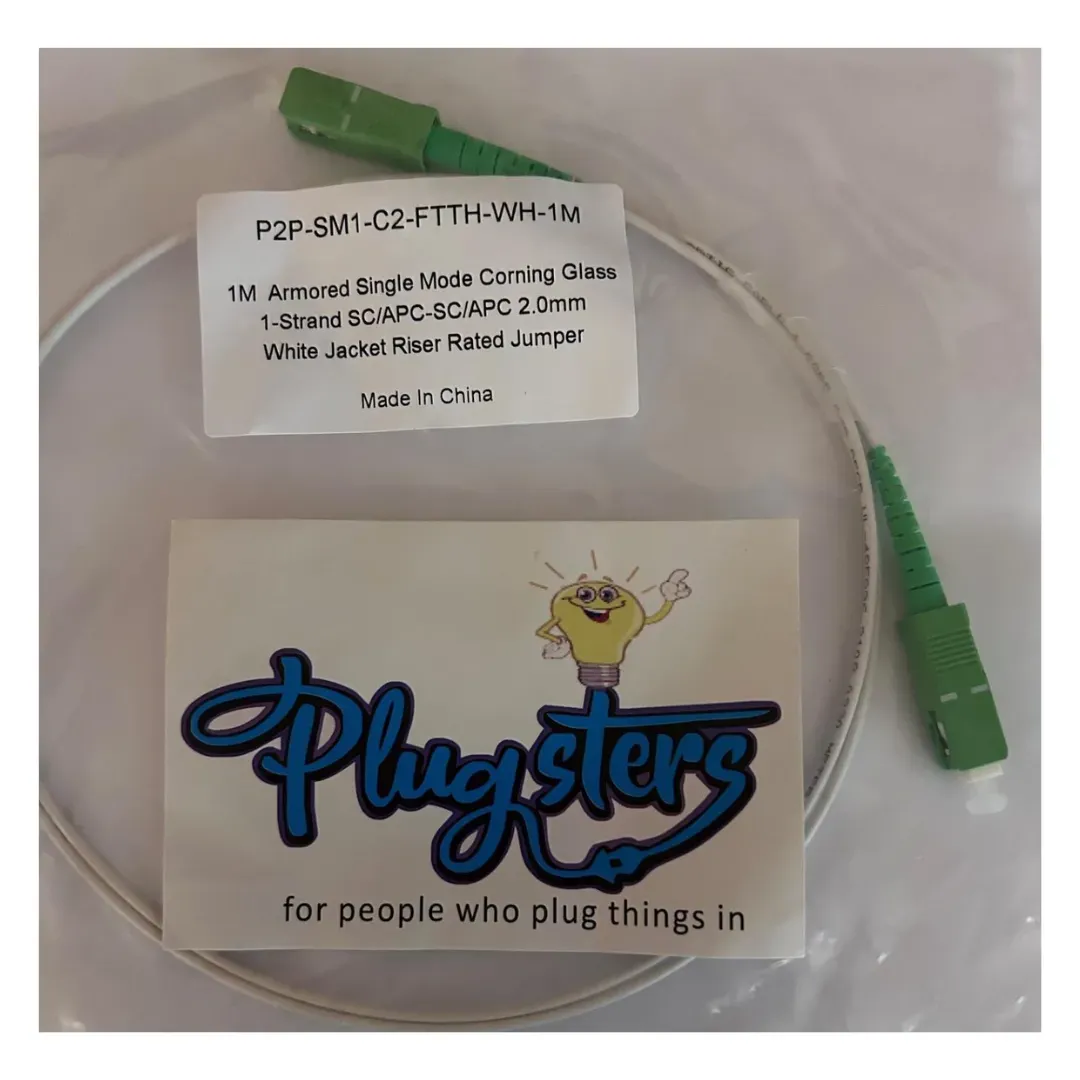

P2P-SM1-C2-FTTH-WH-1M SC/APC TO SC/APC

Description:

Singlemode simplex fiber optic SC/APC to SC/APC patch cable is manufactured from 8.3/125 zipcord fiber. The cable has SC/APC connectors on one end, SC/APC connectors on the other, a Riser jacket, and OFNR rated. Simplex singlemode one strand fiber is most commonly used in FTTH applications. Stainless Steel coiled armor surrounds the inner jacket to protect the fiber from crimping, cracking and impeding the integrity of the fiber signal. The Strength of the armor can replace conduits in many broadband and indoor projects.

Specs:

Fiber Optic Mode: Multimode OM4

Fiber Count: 12

Fiber Length as shown: 1M

Fiber Length: 1M to 100M and Custom lengths

Armor Material: Stainless Steel Coil, acts as conduit

Left Connector Gender: Female

Left Connector Type: MTP/MPO/APC

Right Connector Gender: Female

Right Connector Type: MTP/MPO/APC

Core Diameter: 50/125 & micron

Outer Diameter: 2mm

Jacket Material: Plenum

Cable Mode: Simplex

Features: Physical Contact (PC)

Product Type: Network Cable

Color: Blue

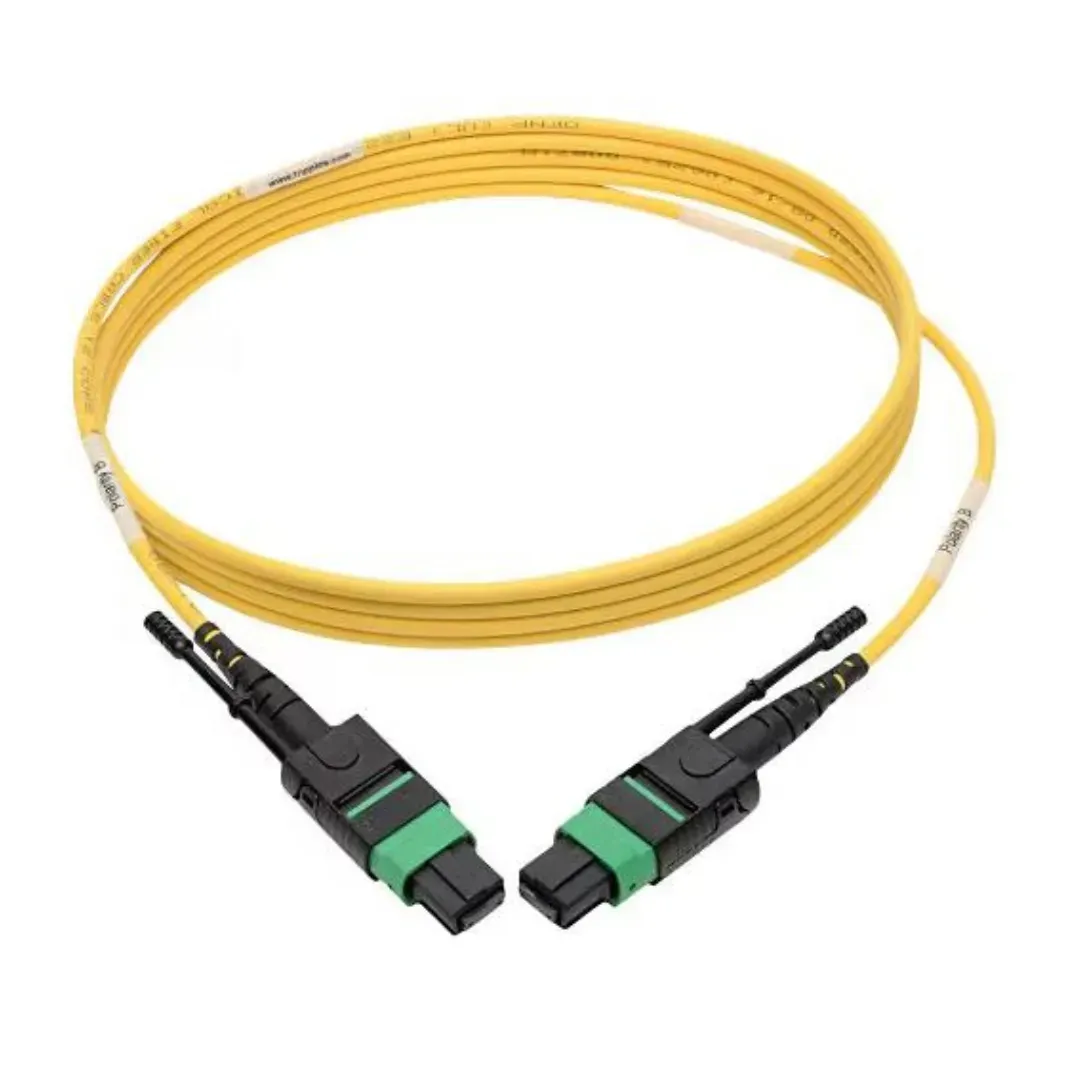

SM12N-A2-PL-3M

Description:

MTP/MPO Single mode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP+ applications in enterprise installations in wiring closets, telecom rooms, and data centers.

With two female MTP/MPO connectors, this single mode fiber optic cable with plenum rated jacket is recommended for connecting switches, hubs, routers, and other high-speed network components in ceilings, walls and ducts.

Stainless Steel coiled armor surrounds the inner jacket to protect the fiber from crimping, cracking impeding the integrity of the signal. The Strength of the armor can replace conduits in many projects.

The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser.
